VORTEX

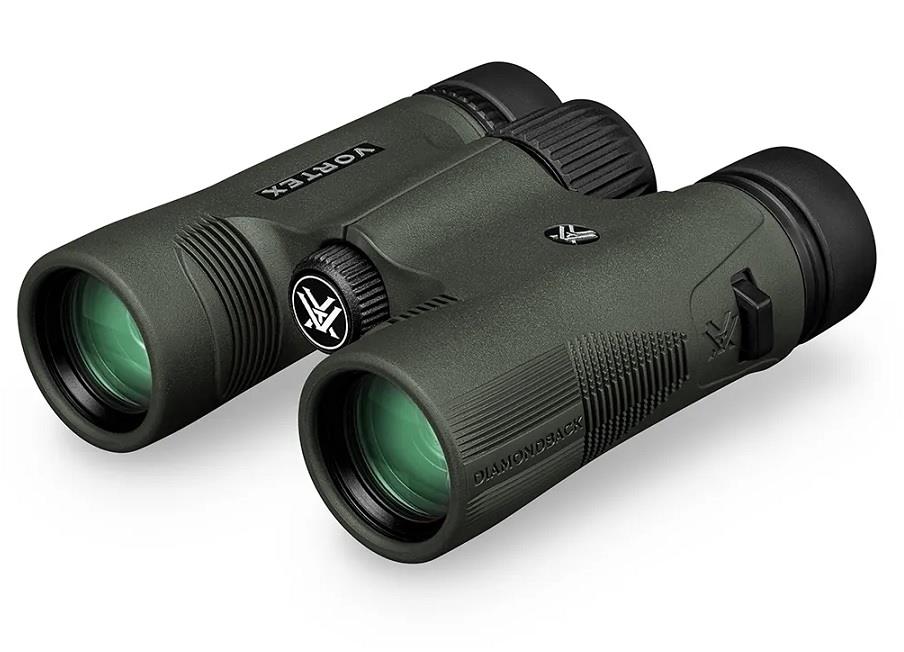

Vortex Diamondback HD 10X28
Made for hunters who demand hard-working, reliable optics, the Diamondback HD delivers sharp resolution, enhanced contrast, and rugged durability. Lightweight yet tough enough to go the distance, it’s a strong lineup designed to handle any kind of hunt. A true workhorse, Diamondback HD gives you the clarity, utility, and trust you need to consistently punch more tags.
PRODUCT FEATURES
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images.
True Open Hinge
Offers superior ergonomics while decreasing total weight and bulk.
Adjustable Eyecups
Twist up and down for comfortable viewing with or without eyeglasses.
Center Focus Wheel
Adjusts the focus of both binocular barrels at the same time.
Phase Correction
Coating on roof prism enhances resolution and contrast.
ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Tripod Adaptable
Allowing use on a tripod or car window mount. Tripod adapter may be required.
Waterproof, Fogproof, & Shockproof
Designed to withstand harsh weather conditions, a wide range of temperatures, and the highest levels of impact.
Specifications
Magnification: 10x
Objective Lens Diameter: 28 mm
Eye Relief: 16.0mm
Angular Field of View: 5.1º
Close Focus: 6.0'
Interpupillary Distance: 57mm - 73mm
Linear Field of View: 273' @ 1000 yds
Height: 4.6"
Width: 4.5"
Weight: 13.3 oz.
