LEUPOLD

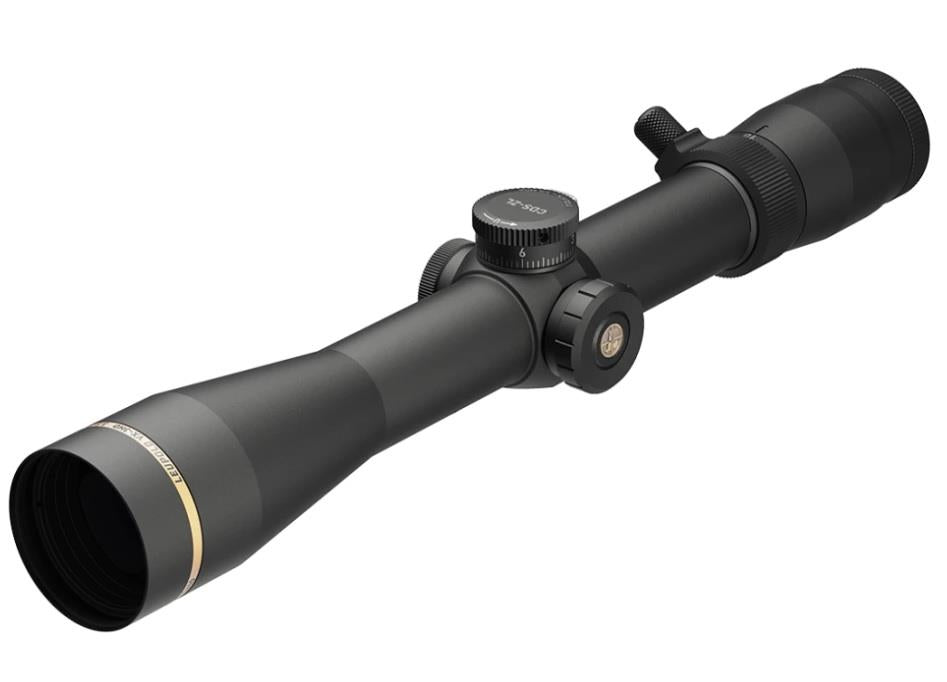

VX-3HD 3.5-10x40 CDS-ZL Illum. Firedot Twillight Hunter
VX-3HD 3.5-10x40 CDS-ZL Illum. Firedot Twillight Hunter
Delivers outstanding performance in low light. With Leupold’s Elite Optical System, it has excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
The illuminated FireDot reticle with seven brightness settings and easy-to-use illumination dial will get you on target fast, even in harsh daylight. We also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves.
The VX-3HD is the best lightweight, low-light hunting scope in its class. And with its low-profile, one-revolution CDS ZeroLock dial, you can be confident your dial will only move when you want it to. Push the button to unlock it, dial, and then rotate it back to zero to lock it in place. It’s that simple.
PRODUCT FEATURES
3:1 ZOOM RATIO
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
ZERO STOP
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
ZERO LOCK DIAL
The ZeroLock® system eliminates accidental dial movement by locking it in place.
HIGH DEFINITION
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
ELITE OPTICAL SYSTEM
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
ILLUMINATED
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
MOTION SENSOR TECHNOLOGY (MST)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
REMOVEABLE THROW LEVER
The removable, low-profile throw lever makes changing magnifications quick and easy. It includes a thread protector plug to use when the lever is removed.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
Reticle Focal Plane: Second Focal Plane
Elevation Adjustment Type: CDS-ZL
Locking Dial: Yes
Revolution Indicator: No
Rezero Type Set Screw
Windage Adjustment Type: Finger Click
Custom Dial System (CDS): Yes
Custom Dial Compatible: Yes
BDC Dial Included: No
Reticle Type: Illuminated
Reticle: Illum. FireDot Twilight Hunter
Magnification Type: Variable
Battery Type: CR2032
Switch Type: Push Button
Nightvision Compatible Illumination: No
Daylight Bright Illumination: Yes
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 14.5
Elevation Adjustment Value per Click: 1/4MOA
Elevation Adjustment Range (MOA): 75
Elevation Adjustment Range (MIL): 21.8
Elevation Adjustment Range (cm @ 100m): 218.2
Elevation Adjustment Per Revolution: 15 MOA
Elevation Dial Travel Limit: 14.5MOA
Windage Adjustment Value per Click: 1/4MOA
Windage Adjustment Range (MOA): 60
Windage Adjustment Range (MIL): 17.5
Windage Adjustment Range (cm @ 100m): 174.5
Windage Adjustment Per Revolution: 15 MOA
Magnification Max: 10
Magnification Min: 3.5
Objective Lens Diameter (mm): 40
Linear FOV Low Mag (ft @ 100yds): 29
Linear FOV High Mag (ft @ 100yds): 11
Angular FOV Low Mag (Degrees): 5.5
Angular FOV High Mag (Degrees): 2.1
Eye Relief Low Mag (in): 4.4
Eye Relief High Mag (in): 3.6
Fixed Parallax-Free Distance (yd): 150
Battery Life (hr), Low Intensity: 1600
Battery Life (hr), Medium Intensity: 1000
Battery Life (hr), High Intensity: 300
Number of Illum Settings: 8
