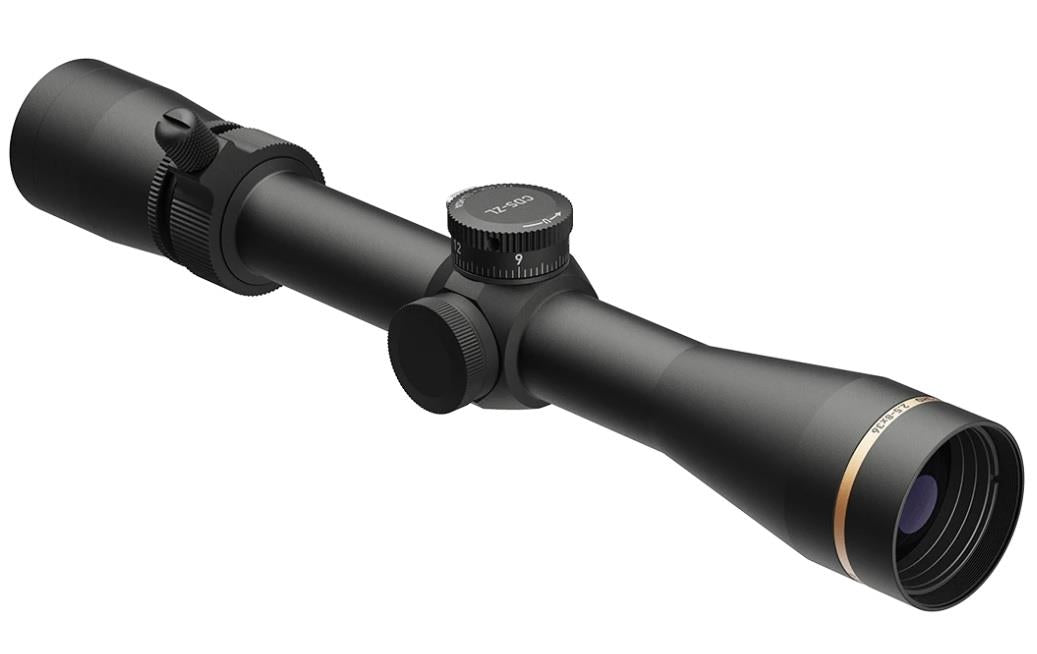

Leupold Riflescope VX-3HD 2.5-8X36MM CDS-ZL Duplex
Leupold Riflescope VX-3HD 2.5-8X36MM CDS-ZL Duplex
The VX-3HD 2.5-8x36mm delivers legendary performance and extreme clarity in an incredibly tough, lightweight package. It's the perfect workhorse for timber hunting and mid-range shots.
PRODUCT FEATURES
3:1 ZOOM RATIO
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
CUSTOM DIAL COMPATIBLE
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
ZERO LOCK DIAL
The ZeroLock® system eliminates accidental dial movement by locking it in place.
HIGH DEFINITION
High-definition, calcium-fluoride lenses ensure incredible clarity at all magnification levels.
SCRATCH RESISTANT LENSES
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
LIGHTWEIGHT ALUMINUM HOUSING
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
ELITE OPTICAL SYSTEM
Leupold’s Elite Optical System offers excellent dawn-to-dusk light transmission for a bright image when it matters most, elite-level glare reduction in harsh light, and the resolution and clarity that diehard hunters and shooters demand.
LOCKABLE EYEPIECE
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
REVERSIBLE THROW LEVER
This reversible throw lever easily clamps onto specific power-selector rings. Its large surface area makes it ideal for quick magnification changes.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
Adjustable Objective: No
Side Focus: No
Reticle Focal Plane: Second Focal Plane
Elevation Adjustment Type: CDS-ZL
Locking Dial: Yes
Revolution Indicator: No
Rezero Type: Set Screw
Windage Adjustment Type: Finger Click
Custom Dial System (CDS): Yes
BDC Dial Included: No
Reticle Type: Second Focal Plane
Reticle: Duplex
Magnification Type: Variable
Illuminated: No
Nightvision Compatible Illumination: No
Daylight Bright Illumination: No
Motion Sensor Technology (MST): No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 11.9
Elevation Adjustment Value per Click: 1/4MOA
Elevation Adjustment Range (MOA): 70
Elevation Adjustment Range (MIL): 20.4
Elevation Adjustment Range (cm @ 100m): 203.6
Elevation Adjustment Per Revolution: 15 MOA
Elevation Dial Travel Limit: 14.5MOA
Windage Adjustment Value per Click: 1/4MOA
Windage Adjustment Range (MOA): 70
Windage Adjustment Range (MIL): 20.4
Windage Adjustment Range (cm @ 100m): 203.6
Windage Adjustment Per Revolution: 15 MOA
Magnification Max: 8
Magnification Min: 2.5
Objective Lens Diameter (mm): 36
Linear FOV Low Mag (ft @ 100yds): 37.5
Linear FOV High Mag (ft @ 100yds): 13.7
Angular FOV Low Mag (Degrees): 7.2
Angular FOV High Mag (Degrees): 2.6
Eye Relief Low Mag (in): 4.4
Eye Relief High Mag (in): 3.6
Fixed Parallax-Free Distance (yd): 150
