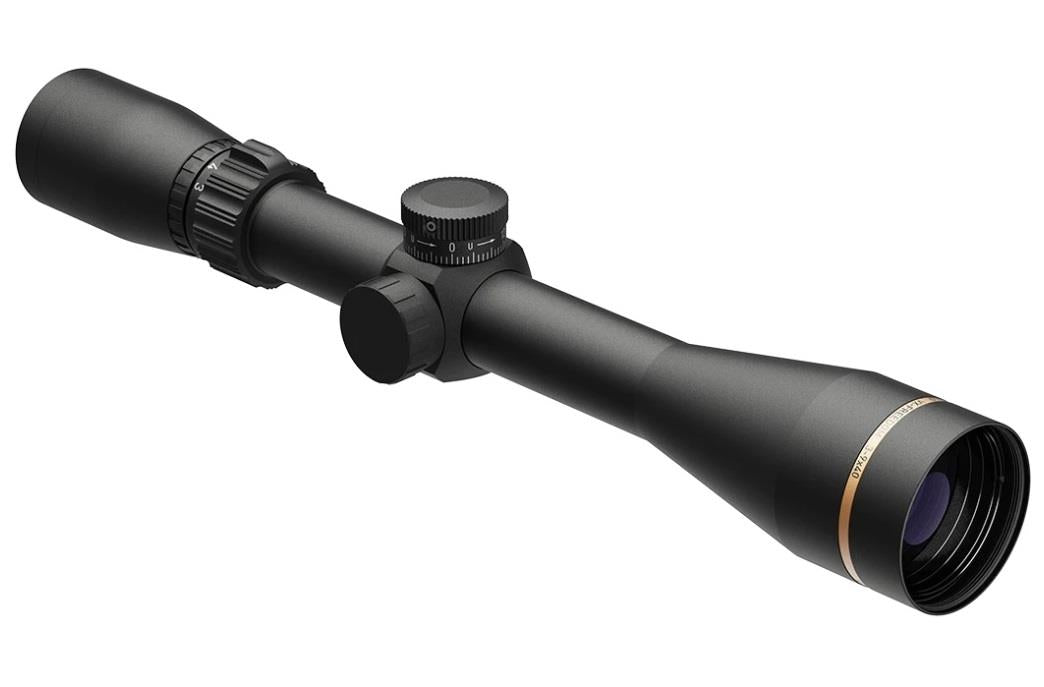

Leupold VX-Freedom 3-9X40 CDS TRI-MOA Riflescope
Leupold VX-Freedom 3-9X40 CDS TRI-MOA Riflescope
Simplicity meets accuracy in one easy-to-use package. Make short work out of almost any shot with our VX®-Freedom® 3-9x40mm and the Leupold® Custom Dial System® (CDS), which gives you a customizable ballistics solution at your fingertips.
PRODUCT FEATURES
3:1 ZOOM RATIO
A 3:1 zoom ratio is very common in many scope models. It gives you 3 times more magnification at high power than at low power (model magnification ranges are available in powers of 3x: 1.5-5, 2.5-8, 3-9, 3.5-10, etc.), so you can dial your power down for close encounters or all of the way up for long-range shots.
CUSTOM DIAL SYSTEM
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
CUSTOM DIAL COMPATIBLE
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
ERGONOMIC DESIGN
Our ergonomic design ensures our products are slim, lightweight, and fit well in your hands no matter what size they are.
LOCKABLE EYEPIECE
A traditional eyepiece lock ring allows you to lock in a focus setting that is best for your eye.
LIGHTWEIGHT ALUMINUM HOUSING
Aluminum offers excellent durability and ruggedness without adding unnecessary weight.
MOTION SENSOR TECHNOLOGY (MST)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
SCRATCH RESISTANT LENSES
Hardened surface coatings are added to meet extreme military standards in scratch resistance and added lens protection.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications:
Adjustable Objective: No
Side Focus: No
Reticle Focal Plane: Second Focal Plane
Elevation Adjustment Type: CDS
Locking Dial: No
Revolution Indicator: No
Rezero Type: Set Screw
Windage Adjustment Type: Finger Click
BDC Dial Included: No
Reticle Type: Second Focal Plane
Reticle: Duplex
Light Management System: Advanced Optical System
Magnification Type: Variable
Illuminated: No
Nightvision Compatible Illumination: No
Daylight Bright Illumination: No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz): 12.2
Elevation Adjustment Value per Click: 1/4MOA
Elevation Adjustment Range (MOA): 60
Elevation Adjustment Range (MIL): 17
Elevation Adjustment Range (cm @ 100m): 175
Elevation Adjustment Per Revolution: 15 MOA
Elevation Dial Travel Limit: 14MOA
Windage Adjustment Value per Click: 1/4MOA
Windage Adjustment Range (MOA): 60
Windage Adjustment Range (MIL): 17
Windage Adjustment Range (cm @ 100m): 175
Windage Adjustment Per Revolution: 15 MOA
Magnification Max: 9
Magnification Min: 3
Objective Lens Diameter (mm): 40
Linear FOV Low Mag (ft @ 100yds): 33.1
Linear FOV High Mag (ft @ 100yds): 13.6
Angular FOV Low Mag (Degrees): 6.3
Angular FOV High Mag (Degrees): 2.6
Eye Relief Low Mag (in): 4.2
Eye Relief High Mag (in): 3.7
Fixed Parallax-Free Distance (yd): 150
