VORTEX

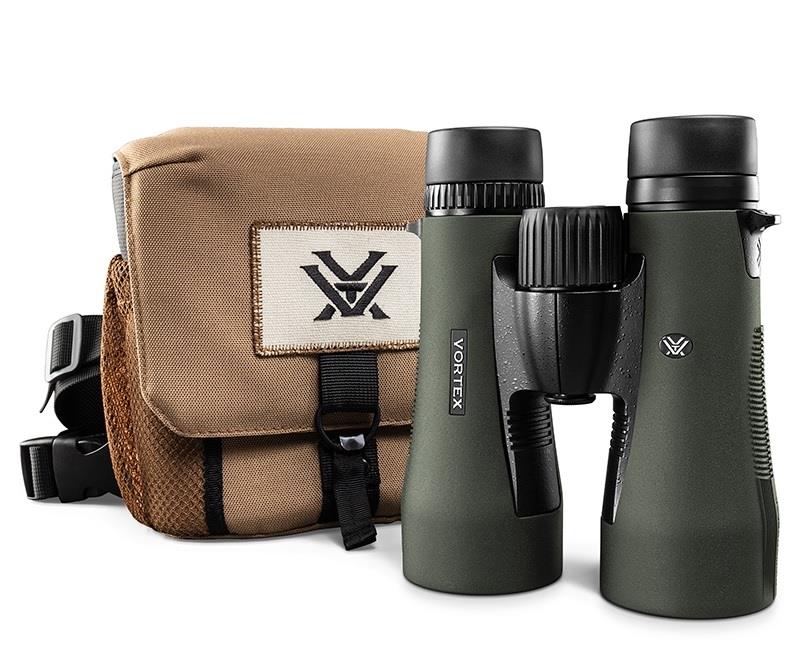

Vortex Diamondback HD 10X50 Binoculars
Vortex Diamondback HD 10X50 Binoculars
The Diamondback HD is a great example of Vortex’s commitment to pushing the price vs. performance envelope, delivering a rock-solid binocular that optically punches far beyond its class. The included GlassPak binocular harness keeps your glass close at hand, ready to deploy at a moment’s notice, all while providing protection and significantly more comfort than traditional neck straps.
PRODUCT FEATURES
OPTICAL FEATURES
HD Lens Elements: HD (High Density) extra-low dispersion glass delivers impressive resolution and colour fidelity, resulting in High Definition images.
Fully Multi-Coated: Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Dielectric Prism Coatings: Multi-layer prism coatings provide bright, clear, colour-accurate images.
Phase Correction: Coating on roof prism models enhances resolution and contrast.
CONSTRUCTION FEATURES
Roof Prism: Valued for greater durability and a more compact size.
Waterproof: O-ring seals prevent moisture, dust and debris from penetrating the binocular for reliable performance in all environments.
Fogproof: Argon gas purging prevents internal fogging over a wide range of temperatures.
ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Rubber Armor: Provides a secure, non-slip grip, and durable external protection.
CONVENIENCE FEATURES
Adjustable Eyecups: Twist up and down to precise, intermediate settings to maximize custom fit for comfortable viewing with or without eyeglasses.
Centre Focus Wheel: Adjusts the focus of both binocular barrels at the same time.
Locking Diopter: Adjusts for differences in a user's eyes. Located on right eyepiece.
Tripod Adaptable: Compatible with a tripod adapter, allowing use on a tripod or car window mount.
Specifications
Model: VT-DB-216
Magnification: 10 x
Objective Lens Diameter: 50 mm
Eye Relief: 17 mm
Exit Pupil: 5 mm
Linear Field of View: 315 feet/1000 yards
Angular Field of View: 6.0 degrees
Close Focus: 6.0 feet
Interpupillary Distance: 60 – 75 mm
Height: 6.6 inches
Width: 5.3 inches
Weight: 30.0 ounces
Included in Box
GlassPak binocular case
GlassPak case harness
Comfort neck strap
Tethered objective lens covers
Rainguard eyepiece cover
Lens Cloth
