GARMIN

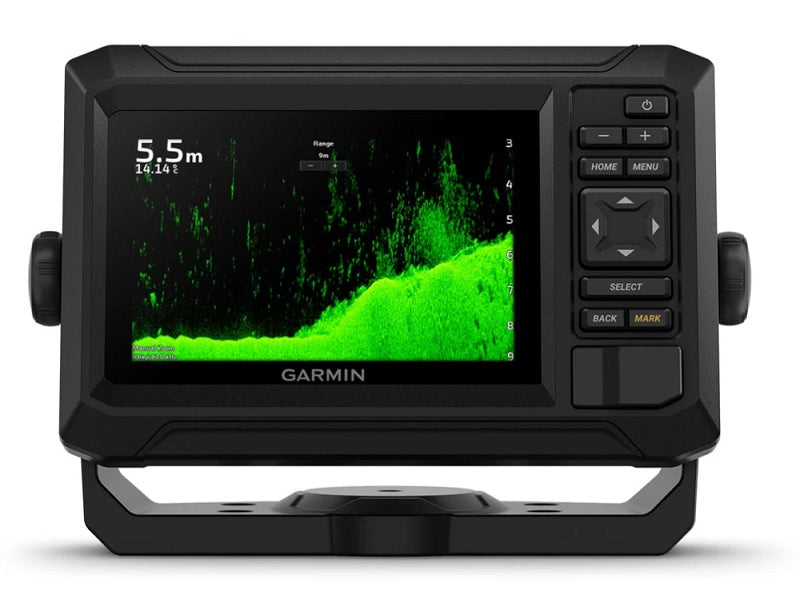

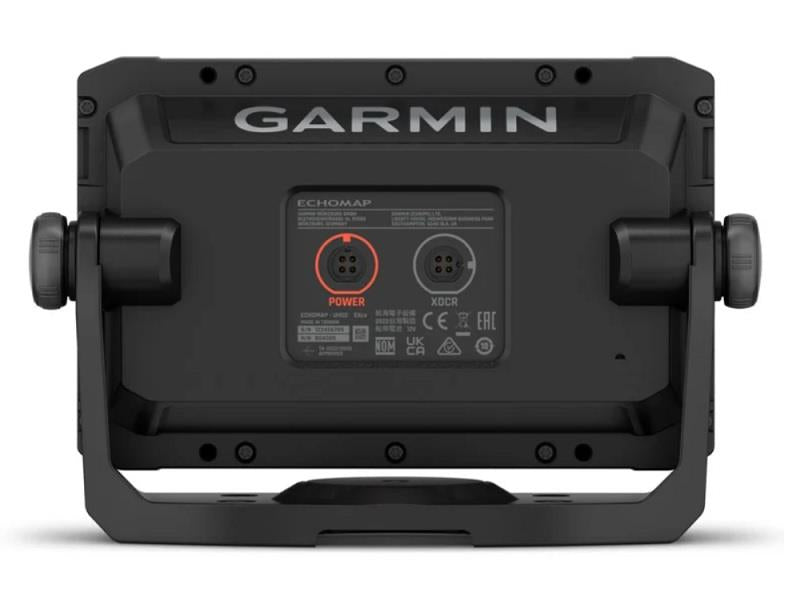

ECHOMAP UHD2 5" cv Chartplotters

ECHOMAP UHD2 5" cv Chartplotters

55cv with GT20-TM Transducer and Garmin Navionics+ Canada & Alaska Mapping

PRODUCT FEATURES

*The bright 5” keyed display is made for convenience.
*Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars.
*What’s under the water looks even better with high-contrast vivid color palettes.
*Wi-Fi connectivity between compatible chartplotters makes it easy to share info.
*Enjoy No. 1 in mapping with Garmin Navionics+ inland and coastal content.

In The Box:

ECHOMAP UHD2 (device varies depending on selection)
GT20-TM transducer
Power/data cable
Tilt mount
Flush mount
Hardware
Documentation

Specifications

Dimension: 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm)
Weight: 1.1 lbs (0.5 kg)
Water rating: IPX7
Display Type: WVGA, IPS
Display Size: 4.3" x 2.6" (10.9 x 6.6 cm)
Display Resolution: 800 x 480 pixels
Mounting Options: Bail or flush

Accepts Data Cards: 1 microSD card; 32 GB maximum size
Waypoints: 5,000
Track points: 50,000
Tracks: 50 saved tracks
Navigation Routes: 100

Power output: 500 W
Traditional sonar (dual frequency/beam): Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP)
ClearVü: Built-in 260/455/800/1000/1200 kHz
