LEUPOLD

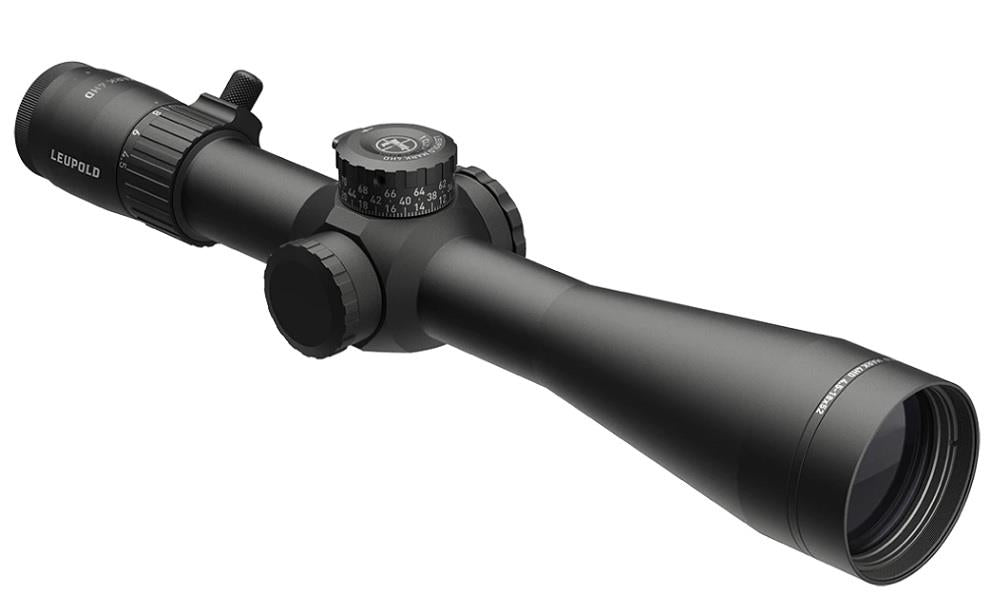

Mark 4HD 4.5-18X52 M1C3 Side Focus FFP Illum. PR1-MOA
Mark 4HD 4.5-18X52 M1C3 Side Focus FFP Illum. PR1-MOA
Ready your rifles with a versatile Mark 4HD. We took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
PRODUCT FEATURES
4:1 ZOOM RATIO
Strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.
25-YARD SIDE FOCUS
Allows you to adjust the scope's parallax from 25 yards to infinity, ensuring a crisp, stationary reticle at almost any distance.
PROFESSIONAL-GRADE OPTICAL SYSTEM
Offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
MOTION SENSOR TECHNOLOGY (MST)
Extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
M1C3 ADJUSTMENTS
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock feature prevents inadvertent adjustments and ensures accurate return to zero.
ELECTRONIC RETICLE LEVEL
Will flash when the scope isn't level, promoting more accurate long-range shots. It can also simplify the mounting process.
CUSTOM DIAL COMPATIBLE
Gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
ILLUMINATED
This scopes comes with an illuminated reticle, which can help you get on target faster in low-light situations.
FIRST FOCAL PLANE
The reticle grows and shrinks at the same rate as the target when you adjust the magnification. This allows you to accurately use the reticle feature at any magnification setting. These reticles are ideal in tactical situations but can also aid in range estimation for hunters and target shooters.
NIGHTVISION COMPATIBLE ILLUMINATION
Micro-adjustable illumination brightness settings support modern night vision devices and can be fine-tuned to your equipment's sensitivity.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications
Battery Type: CR2032
BDC Dial Included: No
Daylight Bright Illumination: Yes
Custom Dial System (CDS): No
Elevation Adjustment Type: M1C3
Guard-ion Lens Coating: No
Locking Dial: Yes
Magnification Type: Variable
Revolution Indicator: Yes
Reticle: Illum. FFP PR-1MOA
Reticle Type: Illuminated
Adjustable Objective: No
Side Focus: Yes
Switch Type: Push Button
Windage Adjustment Type: Capped
Weight (oz): 27
Elevation Adjustment Value per Click: 1/4MOA
Elevation Adjustment Range (MOA): 125
Elevation Adjustment Range (MIL): 36
Elevation Adjustment Range (cm @ 100m): 360
Elevation Adjustment Per Revolution: 25 MOA
Elevation Dial Travel Limit: 71.5MOA
Windage Adjustment Value per Click: 1/4MOA
Windage Adjustment Range (MOA): 65
Windage Adjustment Range (MIL): 18
Windage Adjustment Range (cm @ 100m): 180
Windage Adjustment Per Revolution: 24 MOA
Magnification Max: 18
Magnification Min: 4.5
Objective Lens Diameter (mm): 52
Linear FOV Low Mag (ft @ 100yds): 23.1
Linear FOV High Mag (ft @ 100yds): 5.2
Angular FOV Low Mag (Degrees): 4.4
Angular FOV High Mag (Degrees): 1
Eye Relief Low Mag (in): 3.6
Eye Relief High Mag (in): 3.9
Minimum Parallax-Free Distance (yd): 25
Battery Life (hr), Low Intensity: 1600
Battery Life (hr), Medium Intensity: 1000
Battery Life (hr), High Intensity: 300
Number of Illum Settings: 8
